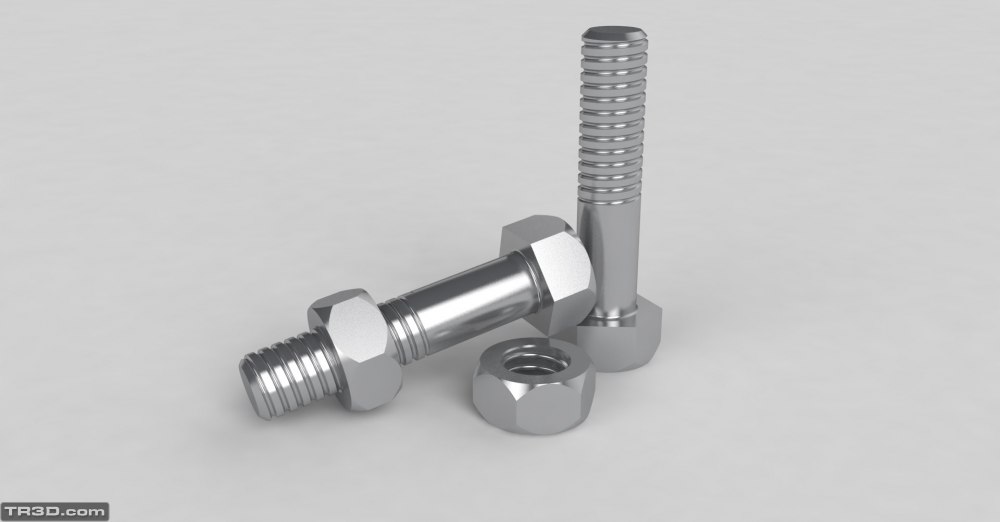

Catia V5 I Somun-Cıvata Modelleme ve DMU Kinematic

Catia V5 ile somun cıvata modelleme ardından DMU Kinematics modülünde joint tanımlama..

Catia V5 R21 Uygulama | Somun ve Cıvata Modelleme | DMU Kinematics Screw Joint

Ders içeriği :

00:00 BOLT

00:49 Polygon

01:35 TriTangent Circle

01:42 Swept Surfaces - With referance Surfaces

01:57 Part Design - Split

02:59 GSD -  Project- Plane

03:14 Helix - Extremum &  Taper Angle - Join

07:20 Part Design- Slot

08:25 NUT09:05 Polygon  Polyline

09:48 Tritangent Circle -Swept - Mirror - Part Design Split

11:24 Copy -Paste Special

11:50 Remove Body

12:25 Assembly-Existing Component

12:54 DMU Kinematics -Screw Joint


Hazırlayan: 3drawing_net (Erhan Biçkioğlu)
